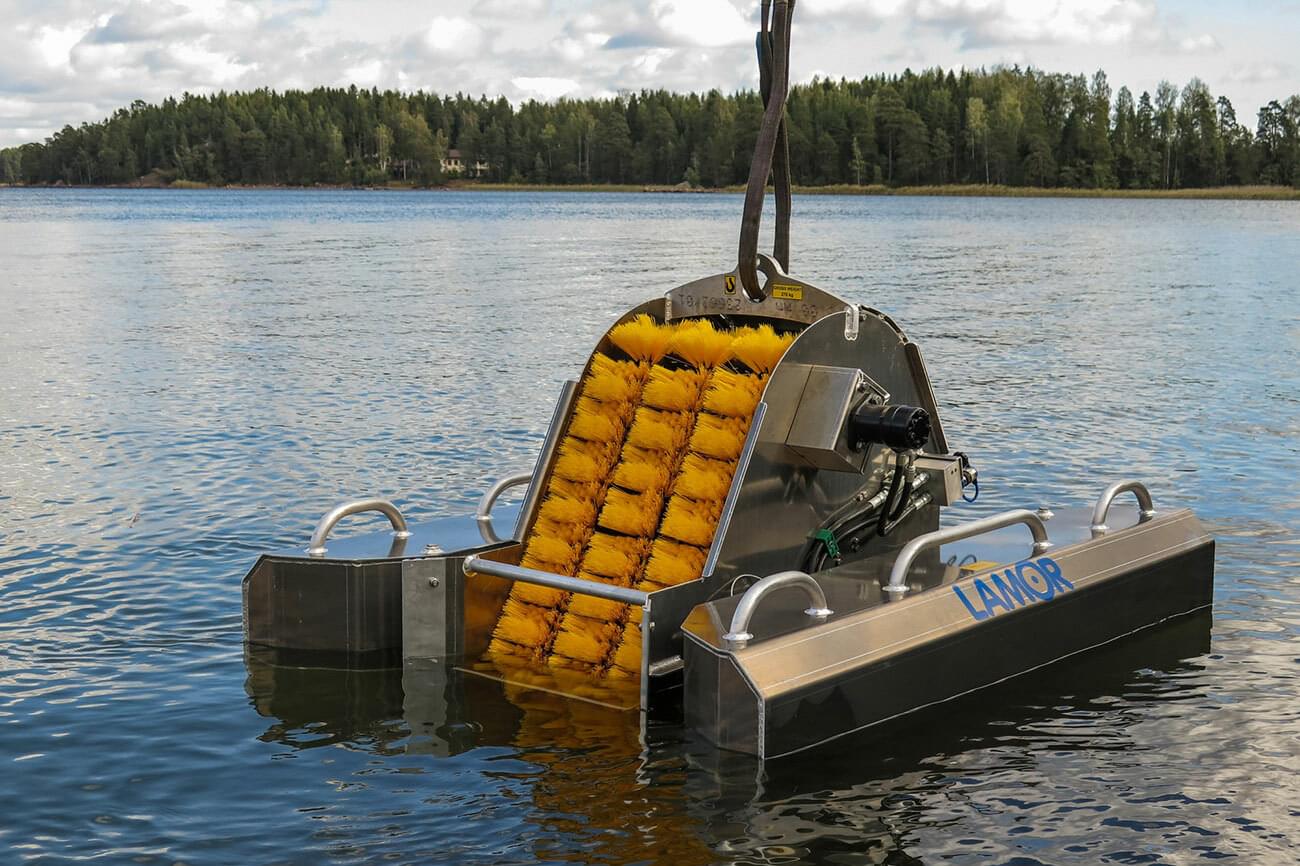

Lamor MultiMax (LAM)

The Lamor LAM Multimax is a brush chain-type free-floating oil skimmer designed to recover oil in fast-flowing rivers, oil ponds, harbors or as an advancing side sweep skimming system. The skimmer can be used in all terrains and environments, including Arctic conditions. The skimmer has been deployed effectively in several oil recovery operations worldwide.

“The LAM 50 Sweep Systems will a vital asset in the vast oil spill response during Deepwater Horizon in 2010 and were installed on over 150 fishing vessels”

How it works

The one 3-row oleophilic V-brush chain bank separates the oil from the water effectively and lifts it to the specially designed brush cleaner from where the oil is directed to the oil transfer pump. The skimmer has a special flow design to improve oil recovery in stationary conditions. The double rotation direction capability enhances the recovery of light to heavy viscous oils. The skimmer has robust detachable aluminum floats, aluminum frame and single lifting point making it easy to lift, operate, clean and store. The LAM 50 skimmer with its standard heated scraper and hopper makes it an effective skimming unit in Arctic conditions, which has been tested at Ohmsett testing facilities.


  • Suitable for recovery of all oil types including weathered crude
  • Enhanced recovery due to brush rotation in both directions
  • Enhanced oil flow due to special design
  • Robust and durable aluminum construction

Scenarios of use

  • Inland Waterways
  • Coastal
  • Port, harbor & terminals
  • Arctic

Related equipment

Technical Specifications
Item ID387630
Length1800 mm / 71 in
Width1416 mm / 56 in
Height1251 mm / 49 in
Weight230 kg / 507 lbs
Draft402 mm / 16 in
Capacity51.2 m3/h / 225 gpm
Free water collected<5%
Hydraulic flow (skimmer)15 l/min / 4 gpm
Hydraulic pressure150 bar / 2175 psi
Power4.0 kW / 5.3 hp
Suitable pumpsGTA 20-70, VX 64/128
