Peristaltic pumps

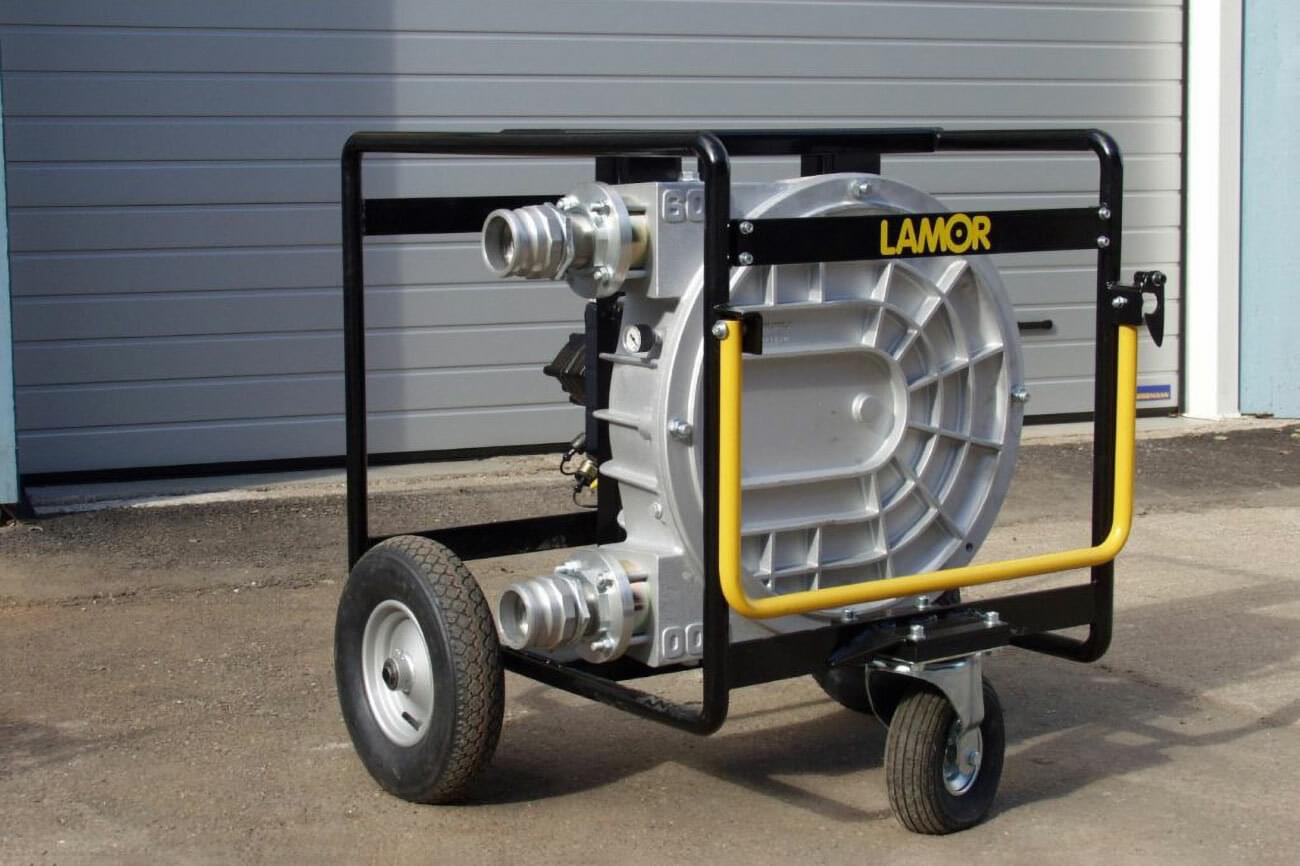

Peristaltic Pumps (Lip 400 and 600 IP)
The Lamor peristaltic hose pumps are ideal for pumping light and medium viscous oils. Due to the unique design of the pump only the hose or tube interfaces with the fluid, this eliminates the risk of the pump being contaminated by the fluid.
How it works
The light-weight and easily transportable LIP 400 has been utilized in remote locations worldwide. The LIP 600 is built in a wheel frame and is powered by a hydraulic power pack, or can be customized with integral gasoline or diesel engine. The complete closure of the hose which is squeezed between a shoe and the track gives the pump its positive displacement action that prevents backflow and eliminates the need for check-valves when the pump is not running. Standard connectors: hydraulic Tema 1/2″, 5011/5021, suction: Camlock 2 1/2″ male, discharge: Camlock 2 1/2″ male.
Features
- Light-weight and transportable
- Wheel frame
- No pump contamination by fluids
Scenarios of use
- Inland
- Rivers
- Harbors, ports & terminals
- Shoreline
- Offshore
Related equipment
| Technical Specifications | LIP 400 | LIP 600 |
|---|---|---|
| Item ID | 202873 | 226303 |
| Length | 920 mm / 36 in | 1080 mm / 42.5 in |
| Width | 850 mm / 33 in | 1000 mm / 39.7 in |
| Height | 770 mm / 30 in | 1030 mm / 40.5 in |
| Weight | 90 kg / 198 lbs | 175 kg / 385 lbs |
| Capacity | 10 m³/h* / 44 gpm* | 16 m³/h* / 70 gpm* |
| Hydraulic flow (skimmer) | 20 l/min / 5 gpm | 25 l/min / 6.6 gpm |
| Hydraulic pressure | 150 bar / 2175 psi | 210 bar / 3046 psi |
| Discharge pressure | 6 bar / 87 psi | 13 bar / 188 psi |
| Power | 5 kW / 6.7 hp | 9 kW / 12 hp |
