Lamor free floating skimmer LFF 1300x870

Free floating skimmer

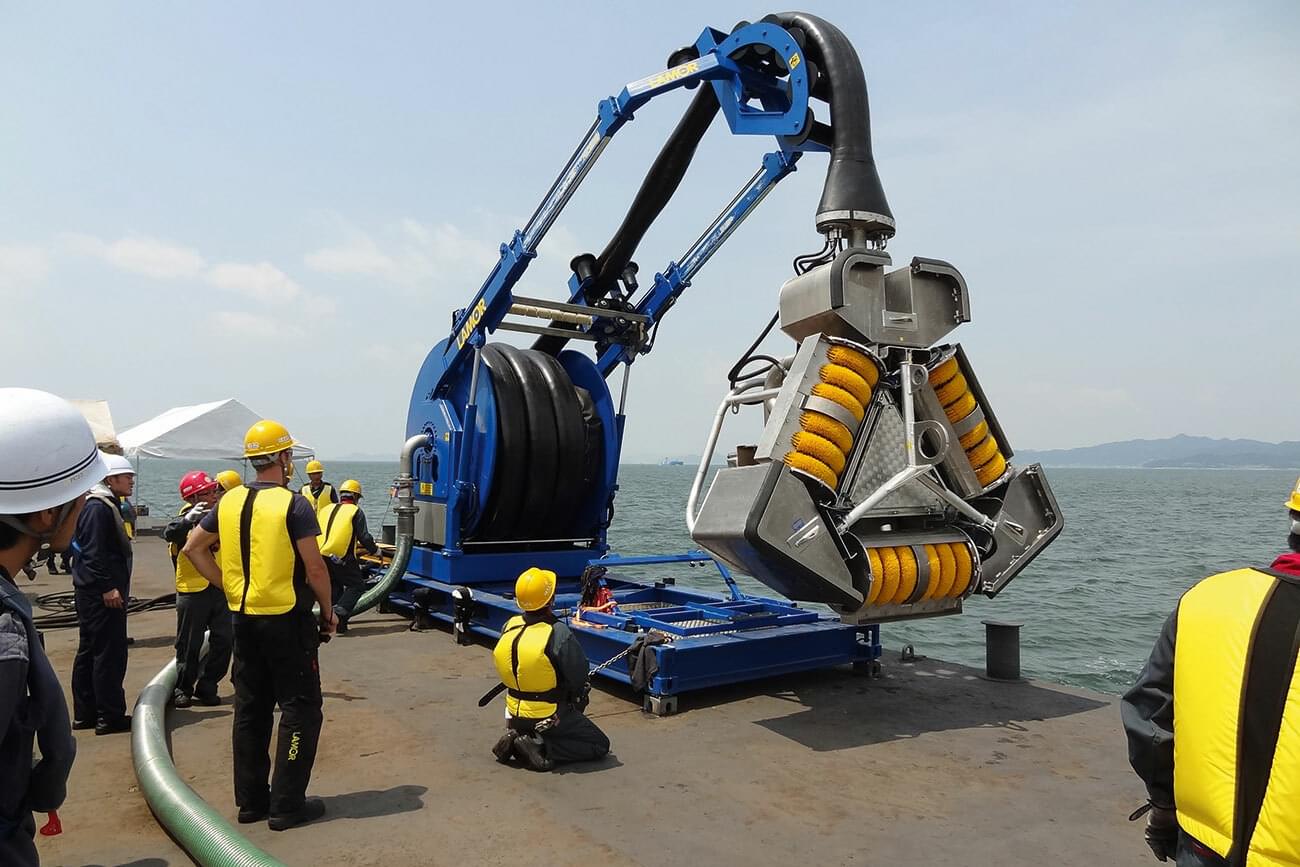

Lamor free floating (LFF) skimmer

The Lamor Free Floating (LFF) Skimmer is a high capacity brush chain skimmer designed to recover oil in offshore operations. It has excellent wave following characteristics and is suitable for use in all environments, including Arctic conditions.

“The LFF Offshore skimmers have proven themselves in large oil spills to be very effective at high capacities, thus reducing OSR operational requirements”

How it works
The skimmer has two 4-row oleophilic V-brush chains that separate the oil from the water effectively and lifts the oil to a specially designed brush scraper from where the oil is directed to the oil transfer pump. The double rotation direction capability enhances the recovery of light to heavy viscous oils. The skimmer has a robust aluminum frame and floats with a single lifting point which makes the LFF 100 easy to lift, operate, clean and store. The LFF 100 has a heated scraper and hopper for effective skimming in Arctic conditions and is equipped with thrusters for mobility. The skimmer has been deployed effectively in several oil recovery operations worldwide.


Features

  • Suitable for recovery of all oil viscosities, including weathered crude
  • Enhanced recovery due to brush rotation in both directions
  • Enhanced oil flow due to special design

Scenarios of use

  • Offshore
  • Harbors
  • Bays

Related equipment

Technical SpecificationsLFF 100LWS 1300
Item ID395330266680
Length2290 mm / 90
in
2660 mm / 105 in
Width2250 mm / 86
in
2214 mm / 87 in
Height1946 mm / 18
in
2190 mm / 86 in
Weight700 kg / 1540
lbs
420 kg / 926 lbs
Draft900 mm / 35 in1420 mm / 56 in
Certified
capacity
111 m3/h / 489
gpm

360 m3/h /1585 gpm

Free water
collected
<5%

<30%

Hydraulic flow
(skimmer)
70l/min / 19
gpm
N/A / with thrusters 70l/min / 18 gpm
Hydraulic
pressure
210 bar / 3045
psi
N/A / with thrusters 225 bar / 3265 bar
Power25 kW / 34 hpN/A / with thrusters 28kW / 37 hp
