The Lamor Hydraulic operated Unireel is designed to store oil booms like the Lamor Uniboom X. The reel frame and spool are manufactured in corrosion protected carbon steel. The winder frame comprises forklift channels and 4-point lifting points as standard for easy handling both on and offshore. Marine ISO container corners are included as standard. The Lamor Unireel is driven by high torque hydraulic motors, together with planetary reduction gears with high gear ratio. The automatically activated negative hydraulic braking system ensures complete control over the drum during boom deployment and recovery. The reel is operated by a hydraulic power pack such as Lamor LPP 58 which allows easy deployment and recovery using minimal manpower. This turntable mounted boom reels are provided with an integrated air delivery system for Uniboom X. The operation is secured by a manual backup control panel featuring a distributor valve that controls the direction of rotation, the rotational speed of base and drum (adjustable between 0 and 12 rpm) and the hydraulic brake. Safety of operation can be maximized with a remote control portable unit, which allows the operator to control the deployment and stowage of the boom from a distance. The automatically activated negative hydraulic braking system ensures complete control over the drum during boom deployment and recovery. Both structure and drum are painted with a high-quality marine grade coating to protect against corrosion for increased product durability and minimum maintenance in marine environments. Hydraulic Unireels are fitted with ISO forklift pockets, hoisting points on the frame and 4 anchoring points for fixing the base of the reel to a dockside, ship deck or container bottom. Hydraulic Unireels are fitted with ISO 7241-1 series B hydraulic couplings, meaning that they can be powered by most hydraulic power packs. Other hydraulic couplings are available on request. A Lamor cover can also be supplied ensuring maximum protection for the stored boom. The maximum storage capacity for each size and type of boom must be confirmed with Lamor representative.

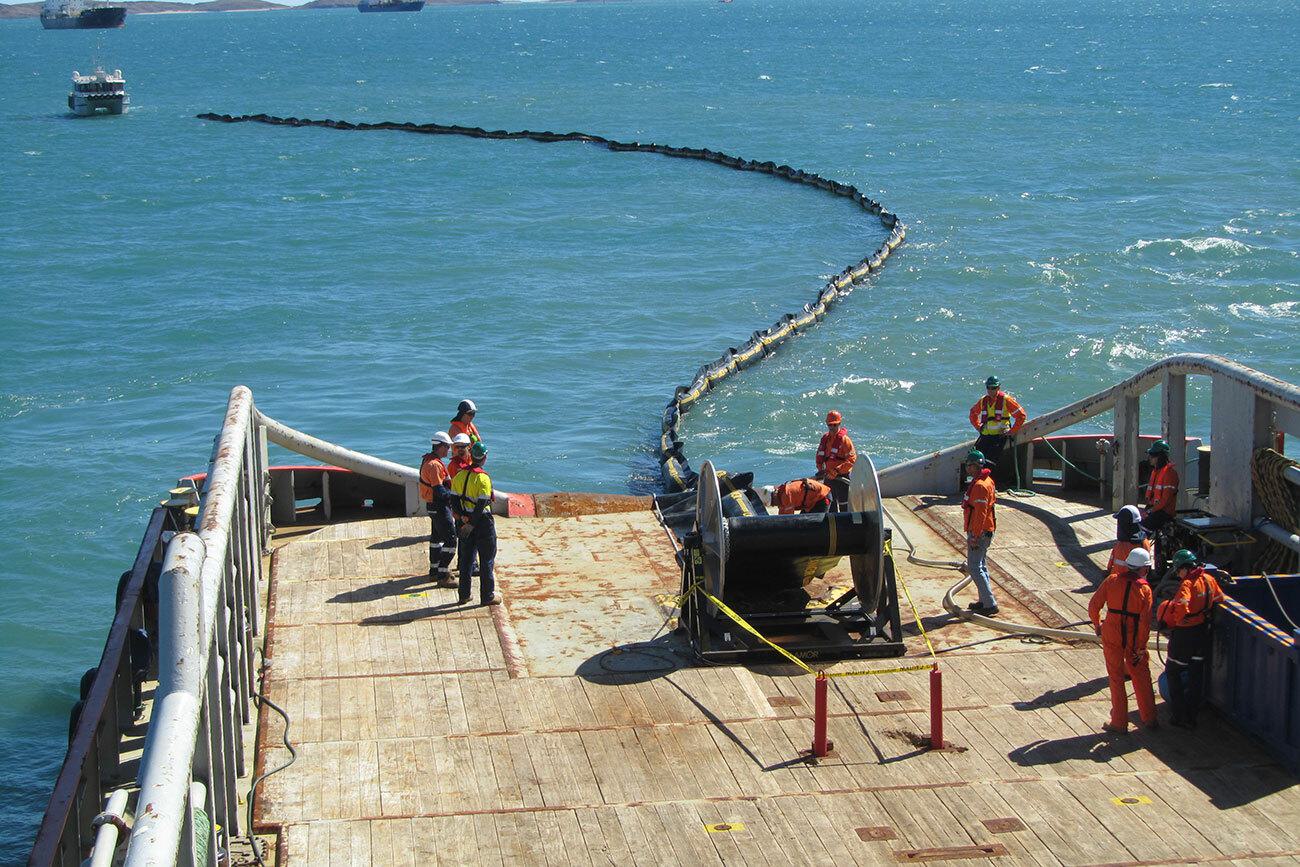

Discover Pictures of Lamor's Unireel Boom Reel with Turntable
Integrated air filling system
Automatic hydraulic brake
Optional remote control by radio
High quality marine grade coating
Compact and robust design
