Sternmax 28

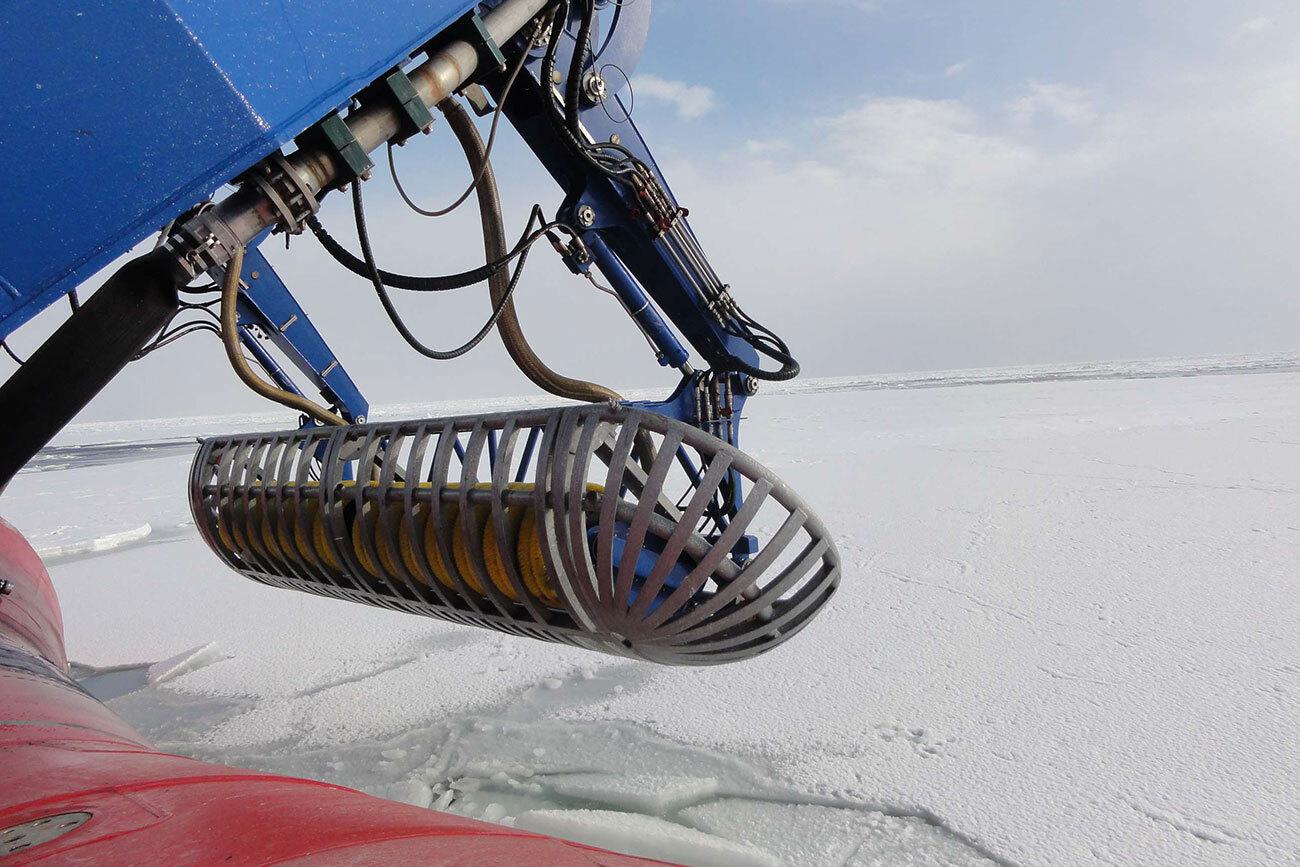

The groundbreaking Sternmax is a high capacity advancing Arctic skimmer designed to separate oil from the drifting ice with a high recovery rate of 230 m³/h. The 28 brush wheel skimmer system has two oil transfer GTA 115 pumps and an ice and oil separating grate that collects oil with excellent ice handling capabilities in harsh Arctic climatic conditions. As the vessel with icebreaking capabilities crushes the ice, the Sternmax is deployed from the rear of the vessel. The isolation grate pushes the large pieces of drifting crushed ice under the water, separating the oil and water from ice. The grate can be lifted and tilted to remove ice and debris. The oil is collected by the brush skimmer that separates the oil from the water and transfers the oil into a hopper equipped with two GTA 115 pumps. The Sternmax is supported by an A-frame that deploys the skimmer off the stern of the vessel from its storage cradle. It is a robust and durable vessel mounted, hydraulically driven system that utilizes Lamor’s proven technology to enable successful Arctic oil spill response operations. The Sternmax is designed and certified in accordance with DNV 22.2 Lifting Appliances and it is Ex-Zone 1. Please see the Downloadables-section for a more thorough overview of the Sternmax, or contact your nearest sales representative for more information.

Technical Specifications
Item ID
Length (isolation grate)
9000 mm / 354 in
Width (isolation grate)
2400 mm / 94 in
1060 mm / 42 in
Weight (system)
32 tonnes / 35 tons
230 m³/h / 1013 gpm
Hydraulic Flow
240 l/min / 63 gpm
Hydraulic Pressure
210 bar / 3045 psi
110 kW / 148 hp
Operational reach
7 m / 23 ft
Oil transfer pumps
2xGTA 115 / 2xGTA 115
Special Features

Excellent crushed and drifting ice handling capabilities

Max. ice thickness 1.1 m (43.3 in)

Ice, water and oil separation

Hot water injection

Steam heated isolation grate

A-frame mounted maneuverable system

28 stiff brush wheel system

Storage cradle for easy maintenance, cleaning and de-icing

Dual positive Archimedes pumps

Removable isolation grate for non-Arctic operations

Remote control Ex Zone 1

Single operator
