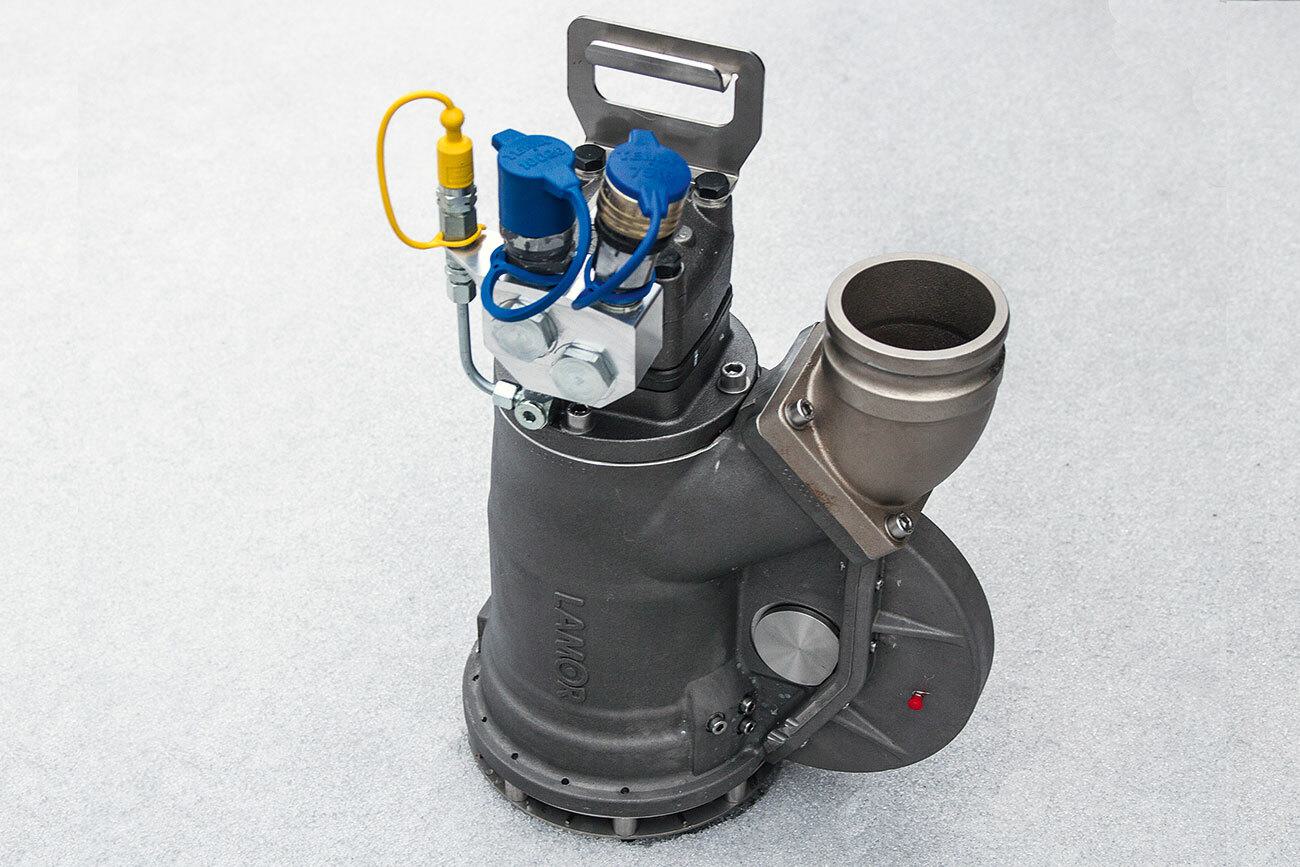

GTA Screw Pumps

The GTA Pump series are multi-purpose submersible Archimedes positive displacement high-performance screw pumps. In addition to being a primary oil transfer pump, the GTA pumps can be utilized for numerous applications such as offloading emergency pumping of heavy crude, bitumen, tank cleaning, pipeline maintenance, sludge removal, etc. The GTA pump design promotes a smooth pumping action and easy flow control that will not emulsify oily water and reduces cavitation ensuring a constant flow. The efficiency of the GTA pumps can be increased with a built-in annular water injection (AWI) flange at the pump inlet, and optionally at the pump outlet, which decreases the pressure in the oil transfer hoses thus making operations safer. The pump casing is compact and made of robust seawater resistant aluminum. Moreover, all internal components are made of acid-proof steel with specialized seals. The GTA pumps have a debris grid and a cutting knife fitted on the inlet. The pumps can be equipped with several different discharge port options, types, and sizes. The pumps can easily be serviced on-site with replaceable parts. The pump capacity of the GTA pumps is certified by Bureau Veritas in varying oil viscosities. For more detailed information about the range of pumps, please see the Related Documents-section for individual product documentation, or contact your nearest Lamor salesperson for a quotation or with any questions.

Technical Specifications
GTA 20
GTA 30
GTA 50
Length
300 mm / 12 in
300 mm / 12 in
400 mm / 16 in
Width
195 mm / 8 in
195 mm / 8 in
250 mm / 10 in
Height
435 mm / 17 in
435 mm / 17 in
500 mm / 20 in
Weight
25 kg / 55 lbs
26 kg / 57 lbs
49 kg / 108 lbs
Manhole Diameter
300 mm / 11.8 in
520 mm / 21 in
400 mm / 16 in
Certified Capacity
20 m3/h / 88 gal/min
30 m3/h / 132 gal/min
50 m3/h / 220 gal/min
Solid Handing
25 mm / 1 in
25 mm / 1 in
300 mm / 1.18 in
Hydraulic Flow (max)
80 l/min / 21 gpm
75 l/min / 20 gpm
160 l/min / 42 gpm
Hydraulic Pressure (max)
210 bar / 3045 psi
210 bar / 3045 psi
210 bar / 3045 psi
Certified Discharge Pressure
14 bar / 203 psi
14 bar / 203 psi
14 bar / 203 psi
Technical Specifications
GTA 70
GTA 115
GTA 140
Length
400 mm / 16 in
500 mm / 20 in
500 mm / 20 in
Width
250 mm / 10 in
300 mm / 11 in
300 mm / 11 in
Height
500 mm / 20 in
598 mm / 24 in
598 mm / 24 in
Weight
47 kg / 104 lbs
71 kg / 157 lbs
71 kg / 157 lbs
Manhole Diameter
400 mm / 16 in
520 mm / 21 in
520 mm / 21 in
Certified Capacity
70 m3/h / 308 gal/min
115 m3/h / 506 gal/min
140 m3/h / 616 gal/min
Solid Handing
30 mm / 1.18 in
30 mm / 1.18 in
30 mm / 1.18 in
Hydraulic Flow (max)
92 l/min / 24 gpm
160 l/min / 42 gpm
160 l/min / 42 gpm
Hydraulic Pressure (max)
210 bar / 3045 psi
210 bar / 3045 psi
210 bar / 3045 psi
Certified Discharge Pressure
10 bar / 145 psi
14 bar / 203 psi
10 bar / 145 psi
Special Features

Compact design, light weight

Robust and seawater resistant

Pumps multiple oil viscosities

Aluminum nickel plated casing

Acid proof steel internal parts

Annular water injection (AWI) on inlet

Cutting knife on inlet

Various discharge port options

Small size for easy installation through manhole

Capacity certified by Bureau Veritas
